Hydrogen Production

As UK partners for Enapter, 2021 Earthshot prize winners in the “Fix our Climate” category, we are committed to pioneering green hydrogen production with innovative technology. Our electrolyser containers are designed and built by our engineers on site, integrating Enapter’s flexible AEM electrolyser systems, to deliver efficient and scalable green hydrogen solutions.

HyPro electrolyser containers

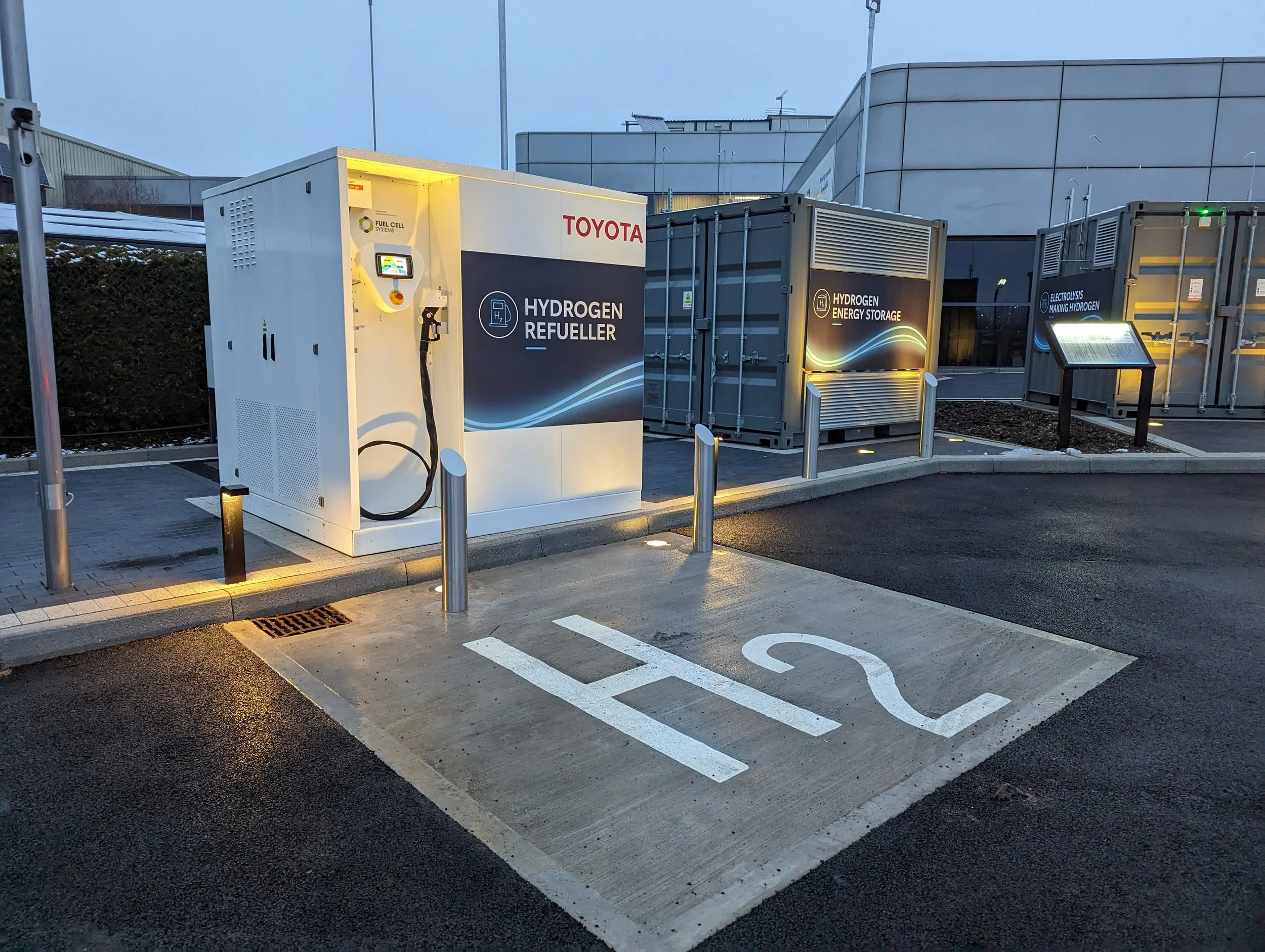

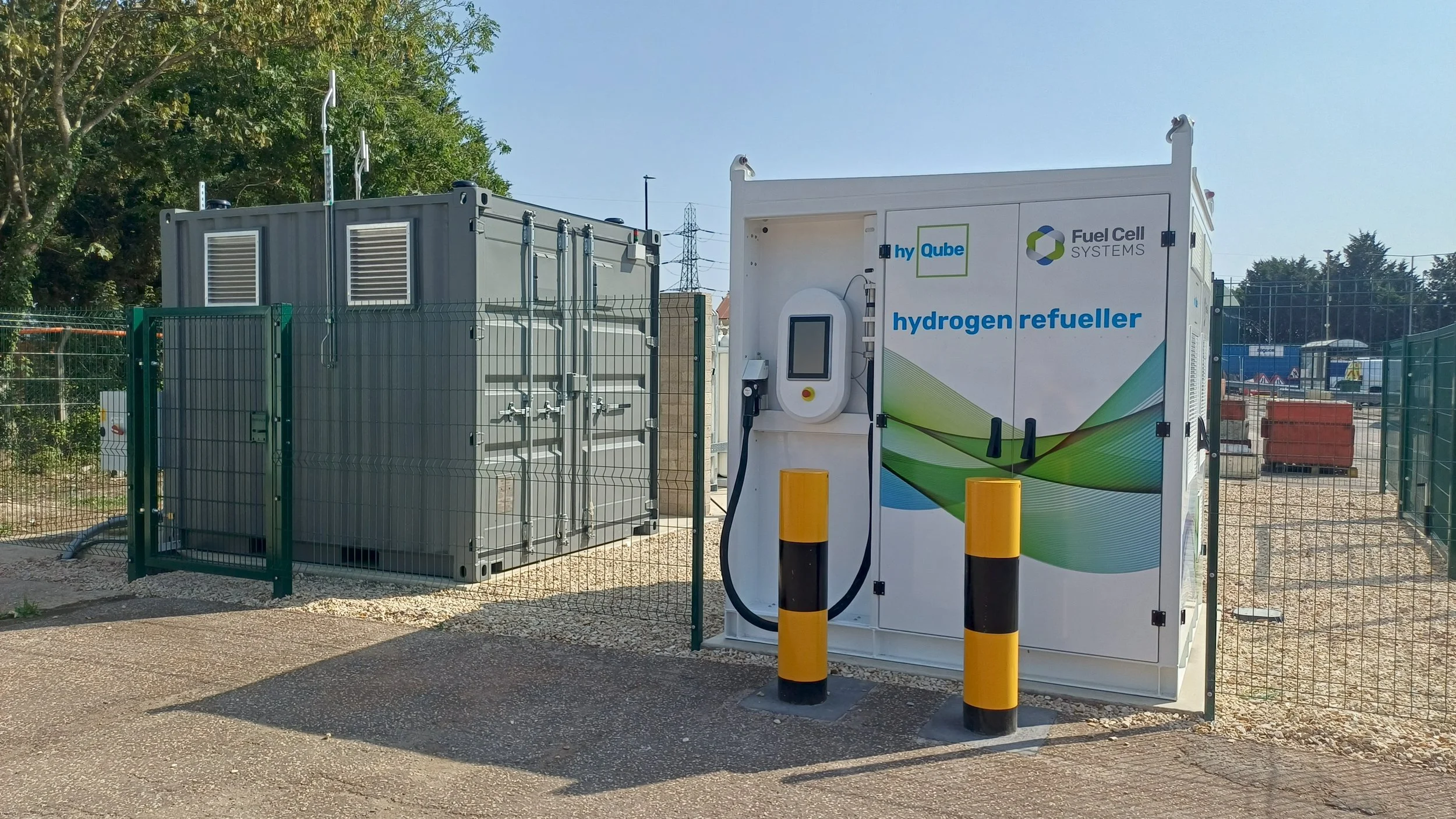

The HyPro electrolyser containers are modular, stackable systems designed for maximum efficiency and convenience. These practical containers ensure uninterrupted operation through their easy maintenance and redundancy features. Focused on green hydrogen production, the HyPro aligns with sustainability goals and is directly compatible with our HyQube 500 refuelling system, offering a seamless end-to-end production to refuelling solution.

Experience streamlined hydrogen with the HyPro, available in two sizes to suit different operational needs: 10ft and 20ft containers.

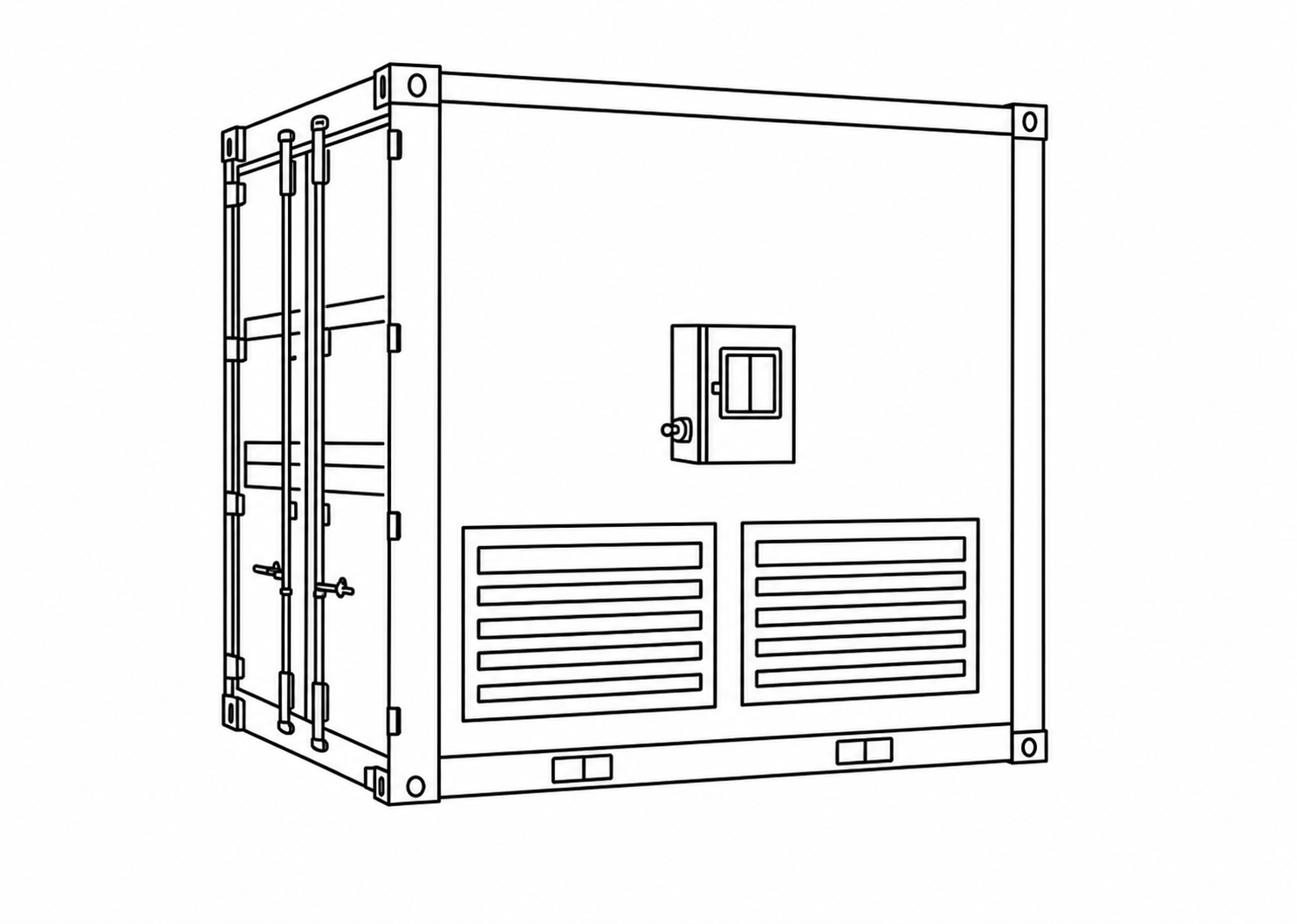

HyPro 10ft Electrolyser Container

Our 10ft HyPro Electrolyzer container is designed for smaller scale operations while maintaining high efficiency and reliability.

  • Electrical Supply: 63Amp Three Phase

    Water Consumption: Up to 40 litres per hour (depending on quality)

    Water Quality: Standard UK tap water

    Water Discharge: Up to 36 litres per hour

    H2 Production Rate: 5 Nm3 per hour, 10 kg per day

    H2 Output Pressure: 35 bar

    H2 Output Purity: 99.999%

    Ambient Operative Temperature Range: 5 ºC - 45 ºC

    Dimensions: 10ft Shipping Container, 3,050 mm x 2,440 mm x 2,590mm

    Weight: 5,000 kg approx.

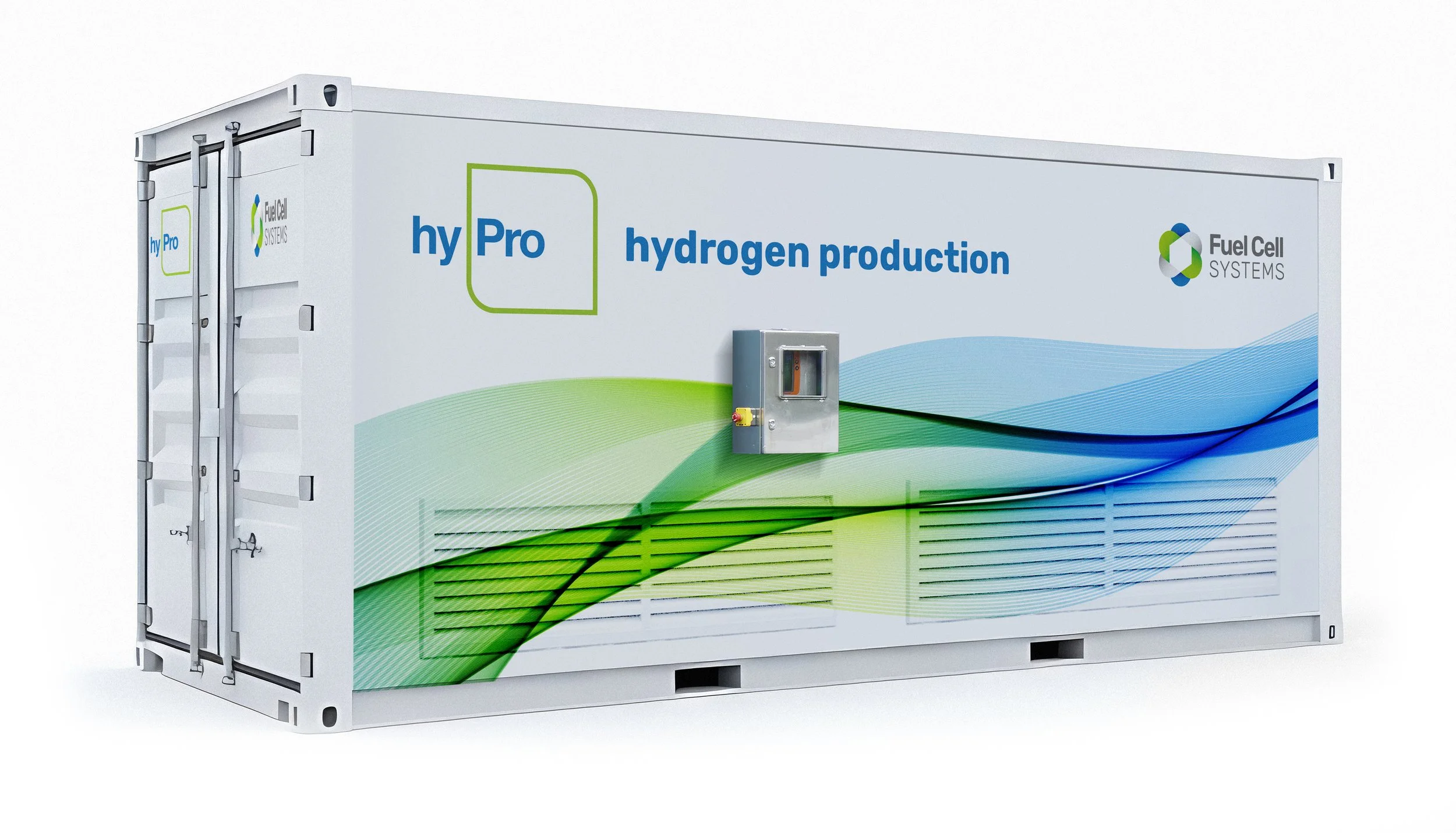

HyPro 20ft Electrolyser Container

For larger scale operations, the 20ft HyPro electrolyser container offers enhanced production capacity while maintaining the same efficiency and quality standards.

  • Electrical Supply: 200A Three Phase

    Water Inlet: Up to 160 litres per hour (depending on quality)

    Water Quality: Standard UK tap water

    Water Discharge: Up to 144 litres per hour

    H2 Production Rate: 20 Nm3 per hour, 40 kg per day

    H2 Output Pressure: 35 bar

    H2 Output Purity: 99.999%

    Ambient Operative Temperature Range: 5 ºC - 45 ºC

    Dimensions: 20ft Shipping Container 6,310 mm x 2,840 mm x 2,590 mm

    Weight: 10,000 kg approx.

HyPro electrolyser applications

Small to medium scale hydrogen fuelling stations: Ideal for establishing and expanding hydrogen refuelling infrastructure.

Hydrogen vehicle testing: Provides reliable hydrogen production for testing environments.

Research and development projects: Supports innovative projects focused on hydrogen technology.

Pairing with green hydrogen electrolysis: Works in tandem with green hydrogen electrolysis processes for a complete sustainable solution.

Our HyPro electrolyser containers represent the forefront of green hydrogen production technology, offering efficient, scalable, and sustainable solutions to meet the growing demand for clean energy. Contact us today to learn more about how our HyPro electrolyser containers can help you achieve your hydrogen production and sustainability goals.
